  5. Cr4 +: YAG crystal
  • Cr4 +: YAG crystal
  • Cr4 +: YAG crystal

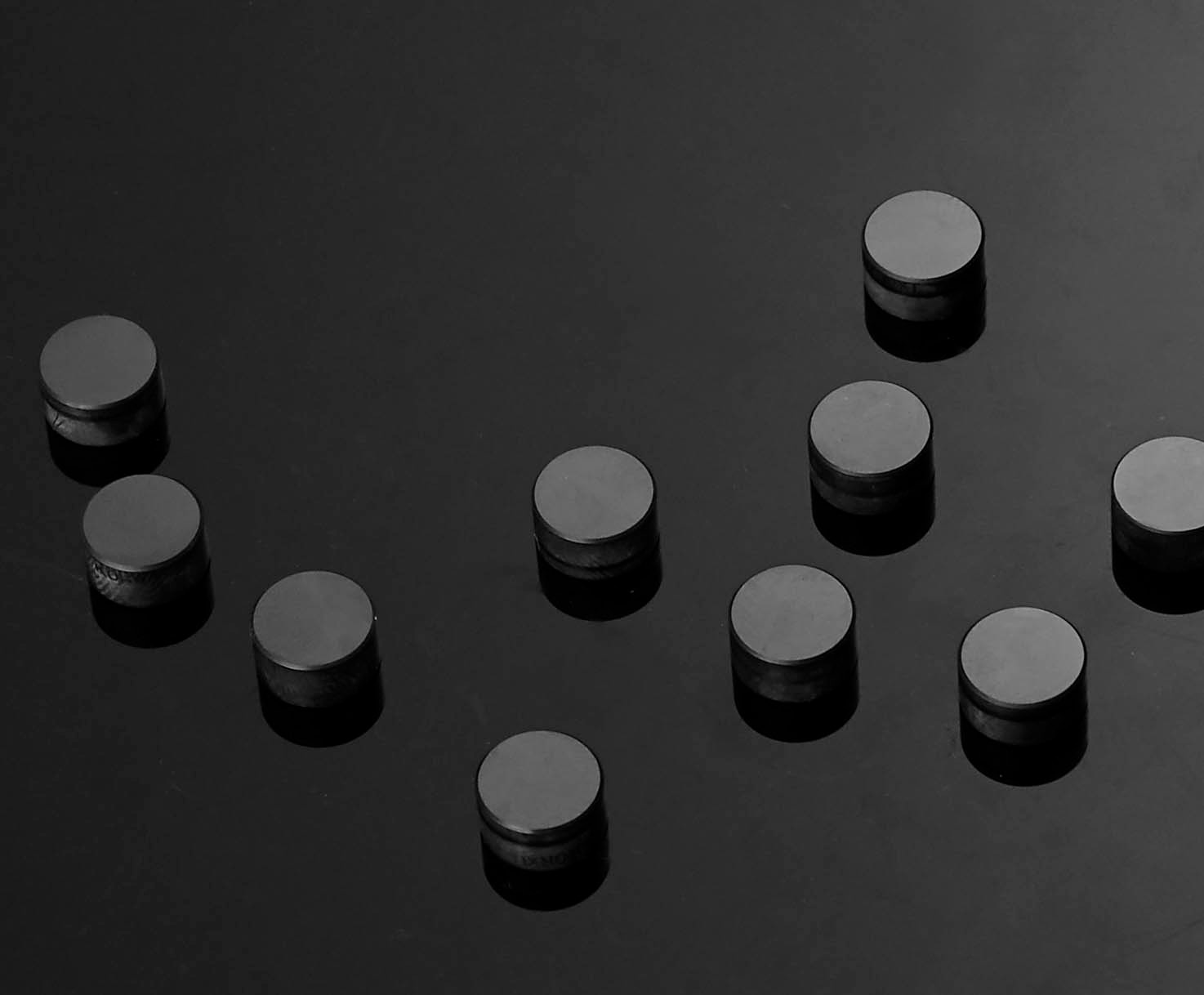

Cr4 +: YAG crystal Cr4 +: YAG crystal

Cr4 +: YAG crystal

  • passive Q-switched crystals
  • electro-optic Q-switc
  • Inquiry Send Email

    Description


    Cr4+:YAG



    Cr4 +: YAG crystal is an excellent passive Q-switched crystals for a large number of 1μm neodymium and ytterbium lasers. With Q-switch output high efficiency, it is suitable for repetitive frequency operation. It has a high light damage threshold and is stable and durable over dyes and color-centered saturable absorbers, which in some cases can replace the electro-optic Q-switch to output high-power laser pulses.

    Orientation

    <100>±5°or <111>±5°

    Initial absorption coefficient

    0.5~6cm-1@1064nm

    Initial transmission

    6%~75%@1064nm

    Size

    Ø:3~12mm

    Side face:3×3~12×12mm

    Tolerance

    Ø:0/-0.03mm,L:0/+0.5mm

    Cylindrical machining

    Fine grinding

    Parallelism

    ≤30"

    Flatness

    λ/8 @632.8nm

    Surface quality

    20-10 (MIL-O-13830A)

    AR coating reflectivity

    ≤0.25%@1064nm

    Damage threshold

    ≥5J/cm2 10ns 10Hz
